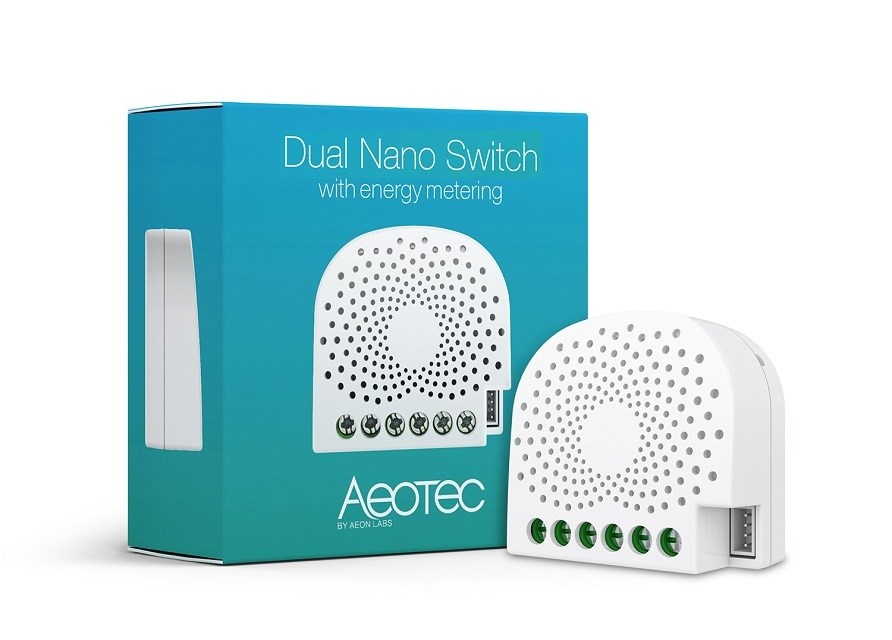

Aeotec Dual Nano Switch ZW132

With the AEOTEC Dual Nano Switch all switchable and non-dimmable electric installations (e.g. lighting, sockets...) can be integrated into a Z-Wave network. Thus, the connected load can be switched both wirelessly via Z-Wave and locally via existing wall switch.

Additionally, the ZW132 has an integrated power metering function which allows to detect the exact energy consumption of the connected load.

The compact radio module is placed in a wall box right behind the normal switch. The switch is no longer directly connected to the load but acts as input device for the AEOTEC insert that is controlling the load. The switch only sends control signal to the insert which controls the load. The solution works with all switch design. You can use a momentary or a toggle switch. It’s recommended to use wall boxes with 65mm depth. But smaller boxes with only 45mm depth can be used also if there is enough space behind the switch. The available space depends on the size of the traditional switch, the dimensions of the wall box and the amount of additional cabling placed in this box.

Nano Switch also features with In-built surge protection and AES-128 bit wireless encryption.

Features:

• Flush-mounted radio module
• Maximum load: 2x 1150W
• Integrates existing installations (lighting, sockets...) into a Z-Wave network
• Works with momentary or toggle switches
• Voltage: 230V, 50Hz
• Wiring: Neutral conductor required
• Wireless Technology: Z-Wave Plus

• Model number: ZW132
• Power input: 120VAC to 240VAC, 50Hz to 60Hz.
• Energy metering function
• Rated output: 6.5A per channel for resistive load.
• Total current: Max 10A.
• Max standby power: 0.8W.
• Operating temperature: 0℃ to 40℃ /32 ℉ to 104 ℉ .
• Relative humidity: 8% to 80%.
• Operating distance: Up to 492 feet/150 meters outdoors.
• IP Class: IP 20
• Flush-mounted radio module
• Maximum load: 2,300 W (2 x 1150 W)

Introduction To Z-Wave Plus™

Z-Wave Plus™ is a new step within the Z-Wave certification process, designed to help consumers identify products that take advantage of the recently introduced 'GEN5' Z-Wave hardware platform, also known as 500 Series or 5th Generation Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance the end user experience and make Z-Wave installations even faster and easier to install and set up.

Z-Wave has led the market in interoperable smart devices for the home since the first Z-Wave product was certified in 2004. With the introduction of the GEN5, Z-Wave 500 series hardware platforms, Z-Wave saw its ecosystem bolstered with new capabilities – including increased range, extended battery life, Over-The-Air upgrading (OTA), additional RF channels and more.

Products with Z-Wave Plus™ are fully backwards compatible with existing Z-Wave products!

For consumers, homeowners, integrators and service providers, these enhancements offer tremendous benefits in terms of faster and easier installations, more extensive device profiles, improved self-healing and longer battery life. With the new Z-Wave Plus certification program, the Z-Wave Alliance is introducing a series of packaging logos that will be located on every Z-Wave Plus™ certified product, informing the consumer this product incorporates the enhanced capabilities of the Z-Wave 500 series.

Features

• 50% improvement in battery life
• 67% improvement in range
• 250% more bandwidth
• Three F channels for improved noise immunity and higher bandwidth
• New Plug-and-Play network-wide inclusion functions
• Improved self-healing and fault tolerance with Explorer Frame feature
• Standardized method for Over-The-Air firmware updates (OTA)
• Improved product information capture for product certification database
