MICRO 8, the new mini digital planar microwave barrier, is an absolute novelty and the only one of its kind on the market.
Micro 8 has a diameter of just 8 cm and a very narrow lobe aperture.
The microwave device is highly reliable and comprises a transmitter unit and a receiver unit. It uses next-generation planar technology, of military origin, in very compact dimensions, especially due to the absence of a bulky parabola.

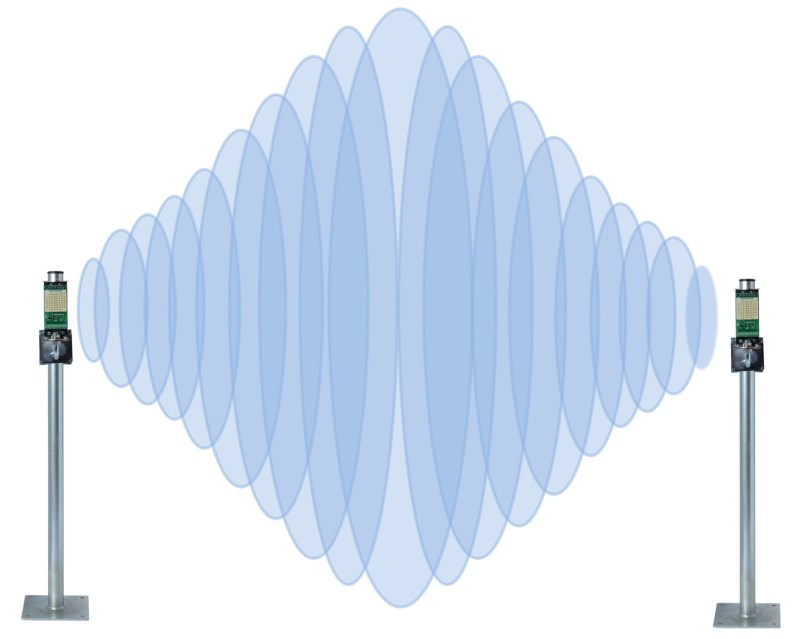

The presence of an intruder is detected via a high-frequency electromagnetic wave system. The energy field generated between the transmitter unit and the receiver unit provides cigar-shaped volumetric coverage with maximum opening at the centre of the detection zone.
The system evaluates the variations in the signal width on the basis of the size of the object, its density and crossing speed. Using these parameters, it can detect the presence of any intruders.
MICRO 8 is recommended for industrial, residential, business, prison and military complexes, and in general for all applications where it is also necessary to protect large spaces.
FEATURES
Maximum range: 200 m
Planar antenna (250 programmable channels)
Lobe aperture: min. 0.6 m - max. 2.4 m
Operating frequency K band 24.000:24.250 GHz
Serial communication RS 485
Protection class IP65
Outdoor range Max.: 200 m – min.: 5 m
Barrier dimensions Diameter : 8 cm - height: 20 cm
Power supply 12 Vdc Maximum consumption 180 mA (RX+TX)
Operating temperature -25°C to +55°C
Lobe height 2,5 m Lobe aperture 50 m range: 0,6 m at 25 m 100 m range: 1,2 m at 50 m 200 m range: 2,4 m at 100 m
Operating frequency 24.000 ÷ 24.250 GHz (250 available channels) K band
Serial communication RS485
Alignment angle horizontal: 180° - vertical: 5°
Detection speed from 0,1 to 10,0 m/s
Maximum reset time following alarm signal 10 s
Minimal signal duration 5 s
Reporting system NC
Standard compliance EN 50131-1 and CEI 79-3
Rohs compliance 2011/65/UE
Protection class IP65 Warranty 3 years
Warranty 3 Years
