Quad
In Stock Free Delivery

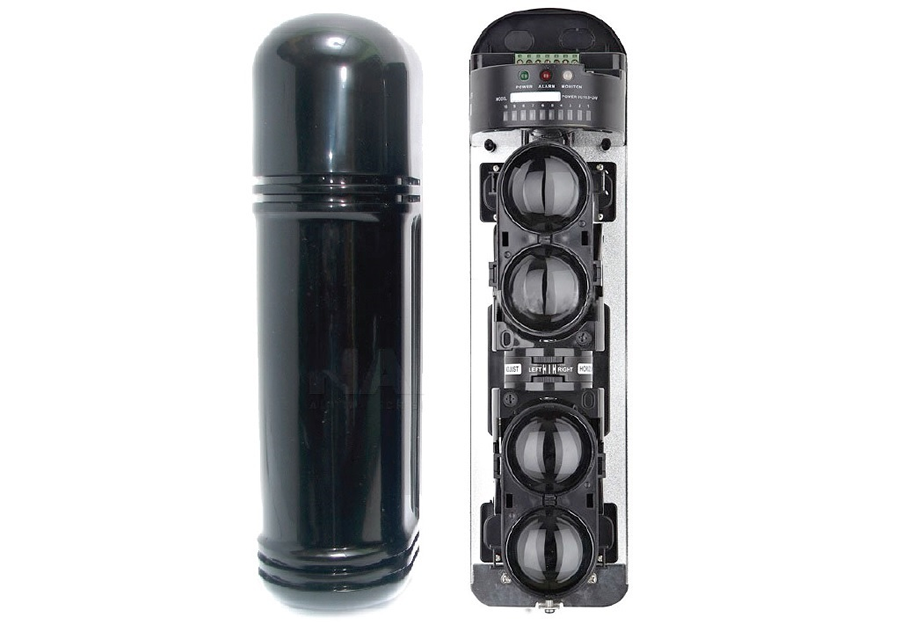

QUAD are the mini IR barriers with dual and quadruple lens. Ready for installation they consists of a transmitter and a receiver with 8 digital frequencies selectable. QUAD are can be installed on a pole, wall or in combination with the box of our TOWER-GARDEN columns. They are easy to install, available with optical synchronization and they are offered at a really unrivalled price/quality ratio. QUAD have a maximum range of 200 m.
- Maximum range outdoors:
200 m (QUAD) - Minimum range outdoors:
100 m (QUAD) - Dimensions :
310 x 95 x 95 mm (QUAD) - Conditions: Pre-cabled, ready for installation
- Synchronization: Optical, aligning with the viewfinder and LED signal
- Power supply: 12 Vdc
- Maximum absorption: 100 mA
- Vertical alignment angle: 20°
- Horizontal alignment angle: 180°
- Operating temperature: -25°C + 55°C
- Disqualification: Automatic
- Acoustic signal: Buzzer alarm and status during programming
- Tripping time: Adjustable between 50 and 240 m / sec.
- Protection class: IP55
- Standard accessories: Pole and wall mounting brackets
