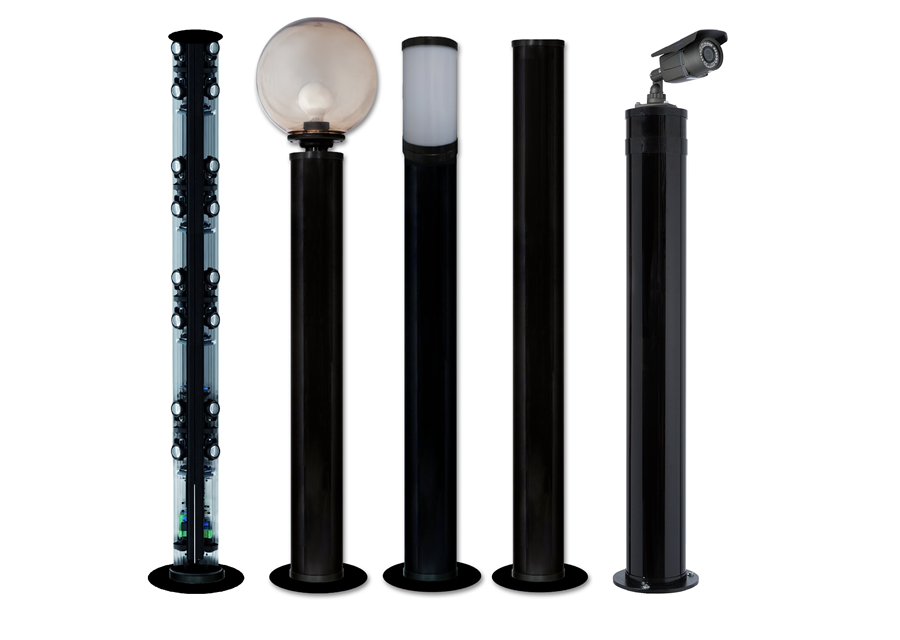

TOWER IR are perimeter columns with crossed beams and double lens. The GARDEN version is camouflaged as a lamp post that combines aesthetics with functionality to a reliable security device. Both pre-cabled and ready for installation they are composed of a transmitting and a receiving unit. The transmitter emits a coded sequence of infrared beams which are detected by all the receivers. The columns are supplied with optical synchronism because each beam is recognized by means of differentiated optical codes (optical synchronization). GARDEN and TOWER IR are more suitable for harsher environments and weather situations (low temperatures, fog, humidity, gusts of winds) thanks to the built-in automatic temperature control device, the disqualification system and sturdy aluminium structure.
- Maximum and minimum range: maximum: 100 m - minimum: 15 m
(for distances of less than 15 m please contact the supplier) - Column diameter and height: diameter: 14 cm - height: 2.0 m
- Other Heights available: 1.5m, 2.5m, 3.0m (for non-standard heights, please contact the supplier)
- Column structure: Extruded in aluminum and IR polycarbonate
- Conditions: Pre-cabled, ready for installation
- Power supply: 12 Vdc - 24Vac (for heaters)
- Disqualification: Automatic
- Maximum absorption: 390 mA (TX 120 mA - RX 270 mA)
- Maximum consumption of heaters: RX 30W - TX 30W
- Operating temperature: - 35°C + 70°C (with heat regulator)
- Synchronization: Optical
- Number of lenses: 4 Double lenses
- Maximum number of lenses: 5 double lenses
- Maximum number of beams: 50 crossed beams
- Vertical and horizontal alignment: angle vertical 30° - horizontal 180°
- Detection system: OR-AND with the possibility of remote AND activation
- Anti-blinding system: Automatic, can be disabled
- Tripping time Adjustable: from 50 to 500 ms
- Alarm output: NC/NO relay contact
- Tamper output: NC contact
- LED indicators: Power supply - Blinding - Heating, low signal - Alarm – Detection
- IR signal: Pulsed coded
- Protection class: IP65
- Standard accessories: Base for ground mounting or wall fixing
